Gear Hobbing Machine Yk3120CNC6 for Cutting Dia200mm 4modules with Fanuc Controller

Products > 7-8m hobbing machine > Gear Hobbing Machine Yk3120CNC6 for Cutting Dia200mm 4modules with Fanuc Controller

Gear Hobbing Machine Yk3120CNC6 for Cutting Dia200mm 4modules with Fanuc Controller

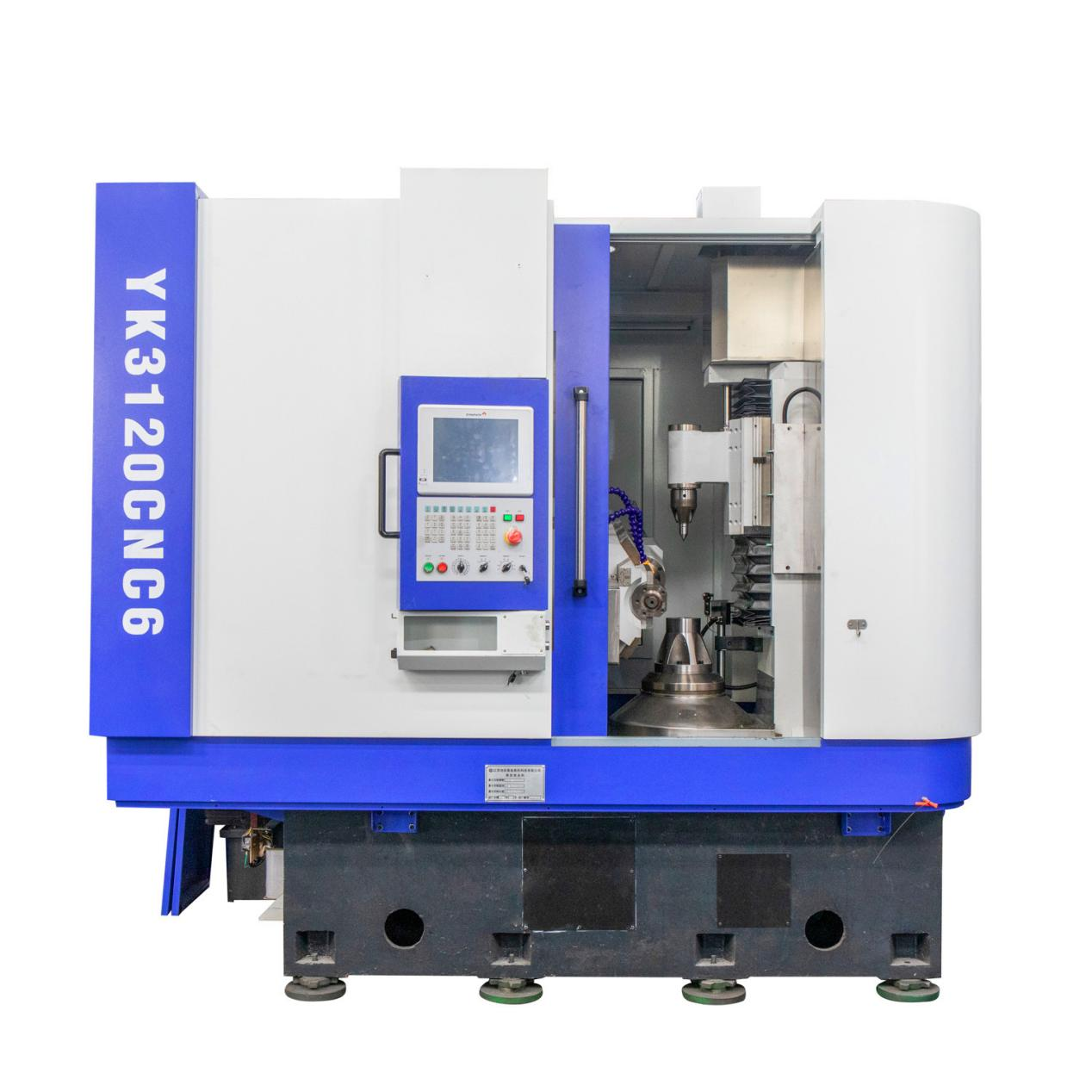

YK3120CNC6 CNC GEAR HOBBING MACHINE

Max Cutting Diameter can be 200mm

Max cutting modules can be 4m

With Siemens and Fanuc CNC Controller for optional

This gear hobbing machine is widely suitable for cutting planetary gear,transmission gear,gear wheel,gear motor,worm gear,worm wheel,gear reducer,bevel gear,helical gear,auto parts,gear motor,gear shaft,Spur Gear,Pinion Gear,Planetary Gear,Differential Gear ,Drive Gear,Spiral Bevel Gear,Plastic Gear,Ring Gear,Shaft Gear,straight gear and so on.

Description	Unit	YK3120CNC6
Max Workpiece Dia	mm	Ø200
Max Module	m	4
Max Axial Stroke（Z Axis Displacement）	mm	300
Max Teeth Number		3-400
Max work Cutter Dia x Length	mm	120×130
Cutter Spindle Taper Hole		BT40
Worktable Dia	mm	200
Max Swing angle of the hob head		±45°
Center distance between hob and worktable	mm	25175
Distance from center of hobbing cutter to worktable surface	mm	190-490
Distance between Top Center to Worktable	mm	300-680
Cutting Stroke of Y Axis	mm	120
Max Spindle Speed（B Axis）	r/min	2600
Max Speed of Worktable（C Axis）	r/min	310
Straight Coordinate resolution of CNC Axis	mm	0.001
Rotary Coordinate resolution of CNC Axis		0.001°
Total Power of Machine	KW	11.6
Max Gross Weight	KG	7000
Dimension（L×W×H）	mm	2620×2650×2820
