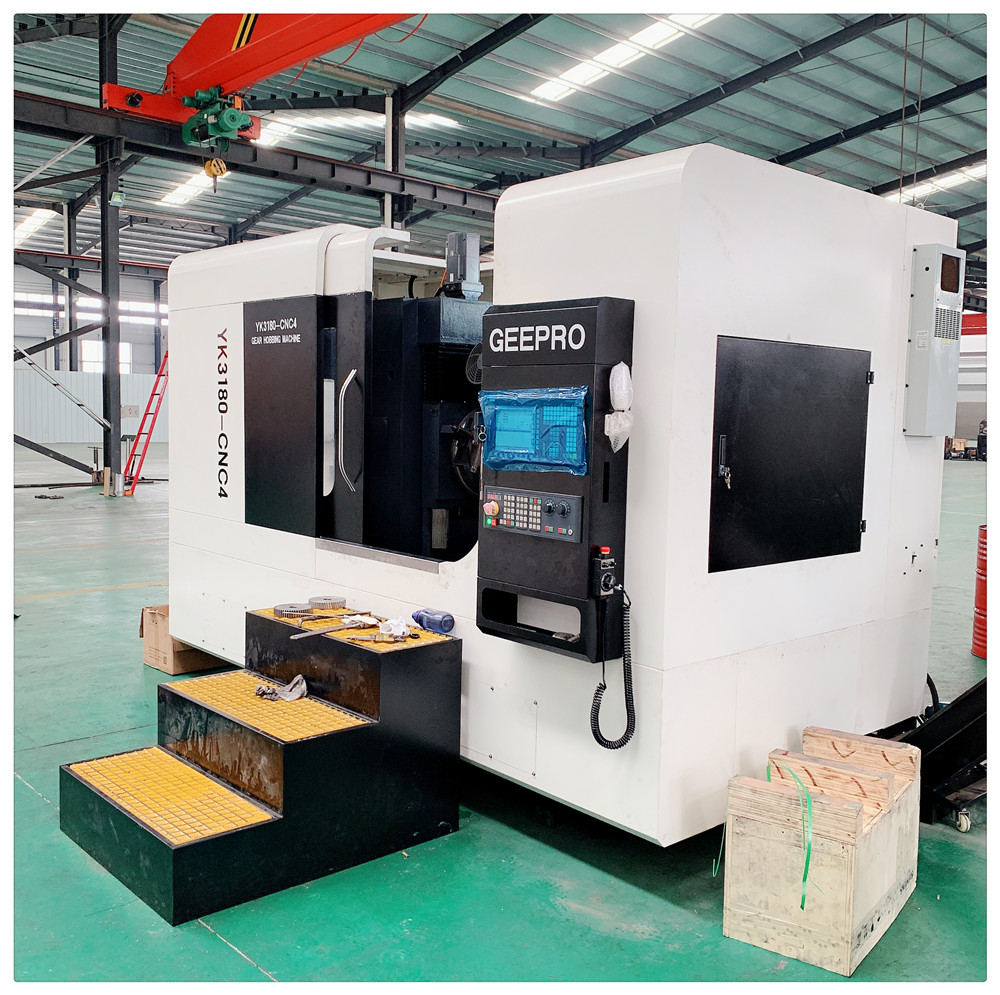

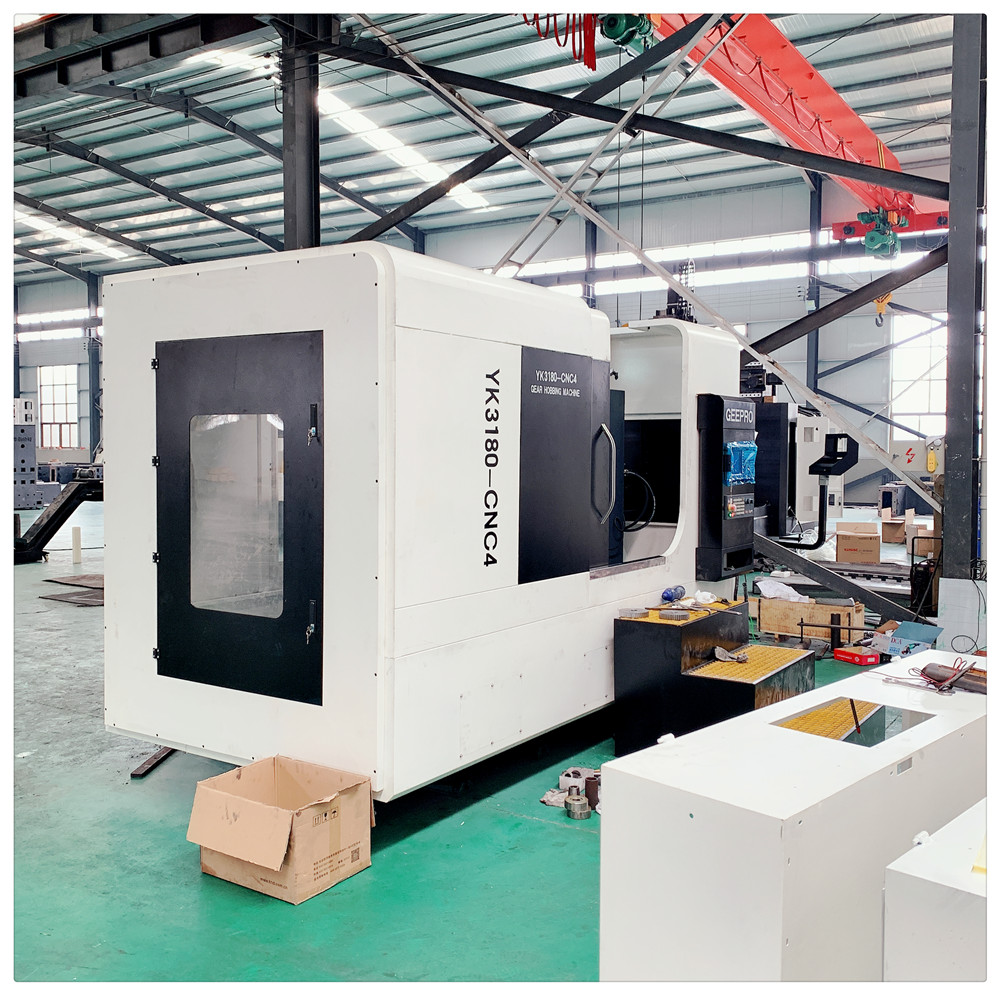

4 axis YK3180 CNC Economy Gear Hobbing Machine for cutting gear sizes to be
max diameter 800mm
max modules 8-10 m
The YK3180 gear hobbing machine is a flexible solution for large sizes gear cutting. It works with a variety of components up to module 8-10m and workpiece diameters between 100 and 800 millimeters.
Technical Specifications:
Machine Model | YK3180CNC4 |
Max. Working Diameter | 800mm |
Max. Working Module | M10 |
Working Width Ma.x | 300mm |
Max. Installation Length of Work Piece | 350mm |
Range of Number of Teeth | 10--1000 |
Max. Diameter of Hob | 180mm |
Length of Channeling Knife of Hob | 50mm |
Spindle Diameter of Hob | Φ22mm、Φ27mm、Φ32mm、Φ40mm& 1 set of Standard Arbor |
Speed of Main Shaft of Hob | 700r/min |
Max. Rev of Operating Platform | 30r/min |
Z Axle Quick of Movement | 2000mm/min |
X Axle Quick of Movement | 2000mm/min |
Distance Between Core of Hob to Core of Operation Platform | 50mm(min) |
Swivel Angle of Cutter Frame | ±45° |
Total Capacity of Motor About | 25kw |
Extemal Dimensions of Machine(LxWxH) | 3315×2200×2300mm (See the outline drawing for details) |
Approximate Weight of Machine | 9000KG |
