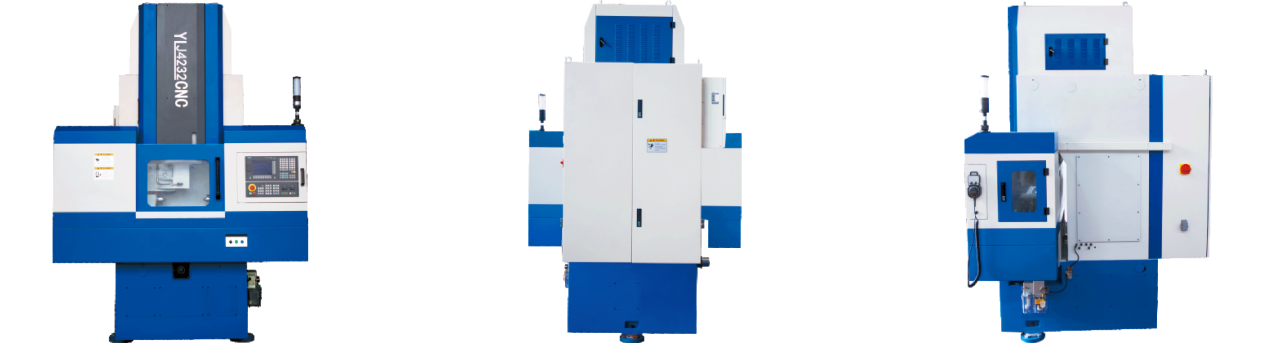

YKJ4232 CNC Gear Shaving Machine

The six-axis four-linkage of the machine tool, in which the tool rotation axis and the workpiece rotation axis adopt the variable lead precision pupa wheel pair transmission, the main movement and the knife movement are directly controlled by the servo motor, which has high processing efficiency and good accuracy and stability. Mainly used in construction machinery, reducer and wind power industries.

The machine tool is equipped with processing. The function of auto-switching the cutter when the external gear is used, realizes the automatic conversion of the cutter for the internal and external gears through program input.

description

unit

specfflcalion

Max .workpiece dia external gear

mm

320

Max module

mm

6

Maximum distance between the vertices of the workpiece

mm

580

Distance between centric max

mm

280

Lines of workpiece and cutter min

mm

110

Swing angle of cutter head

deg

±30

Rotating speed of cutter

mm/min

55-270 ( stepless)
